| Cheng
Jing Full Flow Type Coaxial Water Pump Series 7B |
Structure :
The single- or three- phase motor of this machine is made
of coaxial type stainless steel. The blade wheel adopts
high quality gun metal. The balancing test proves that
the motor will not off center and vibrate during operation,
and has good performance.
The built - in water resistant shaft seal has high tightness
and small friction. The main body of the machine is made
of thickening cast iron to prevent puncture and provide
long service life.
Purpose :
Water supply for general industry, agriculture, fishery,
livestock husbandry, pig raising, schools and refrigerators. |
|

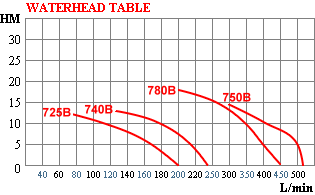

Model
|
Specificatin
|
Volt
|
Current
|
Frenquency
|
|
725B
|
1/2HPx1"
|
220/230V
|
5.7A
|
50Hz
|
|
740B
|
1HPx11/2"
|
220/230V
|
6.2A
|
50Hz
|
|
750B
|
2HPx2"
|
220/230V
|
10.3A
|
50Hz
|
|
780B
|
3HPx3"
|
220/230V
|
11.8A
|
50Hz
|
|
|
|
